Flexible Metal Mesh

当前位置: 首页 > Product > Flexible Metal Mesh

Flexible Metal Mesh

发布时间:2019-09-04 14:40:06 浏览次数:



Patterns of Flexible Metal Mesh

pattern design★frame design★surface treatment★install system design

flexible metal mesh include: cable rod mesh★spiral weave mesh★blance weave wire mesh

Flexible Metal Mesh(图1)Flexible Metal Mesh(图2)Flexible Metal Mesh(图3)

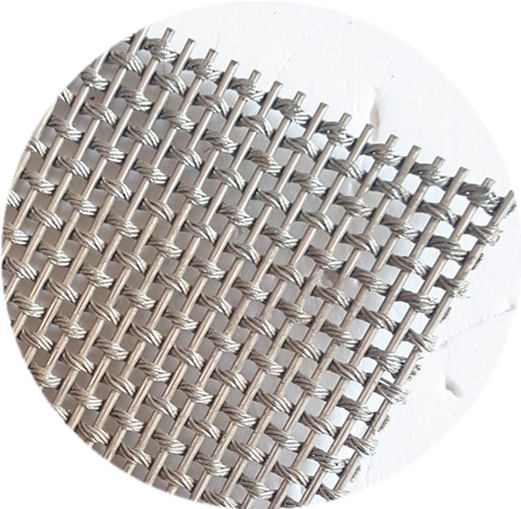

CR-S11M

Material:Stainless Steel304\316

Cable diameter:2.5mm*1
Cable pitch:6mm
Rod diameter:2mm
Rod pitch:8mm
Weight:8kg/m2

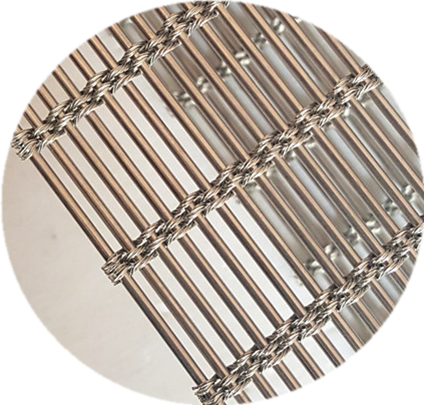

CR-S11S

Material:Stainless Steel304\316

Cable diameter:1.6mm*1
Cable pitch:3.2mm
Rod diameter:1.2mm
Rod pitch:6mm
Weight:5kg/m2

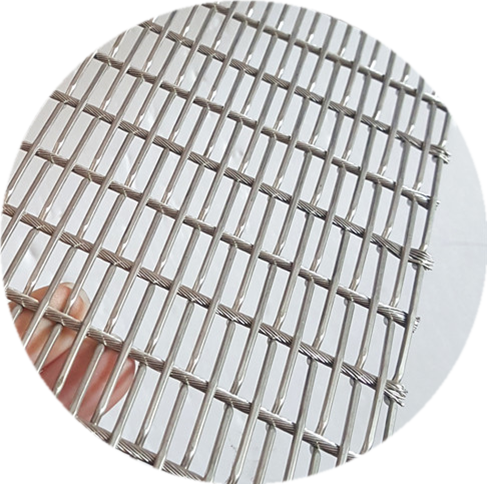

CR-S11L

Material:Stainless Steel304\316

Cable diameter:2mm*1
Cable pitch:17.5mm
Rod diameter:1.5mm
Rod pitch:3.5mm
Weight:5.5kg/m2
Flexible Metal Mesh(图4)Flexible Metal Mesh(图5)Flexible Metal Mesh(图6)

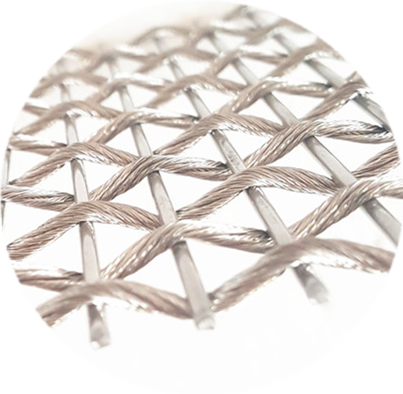

CR-S41L

Material:Stainless Steel304\316

Cable diameter:2mm*4
Cable pitch:50mm
Rod diameter:3mm
Rod pitch:6mm
Weight:11.56kg/m2

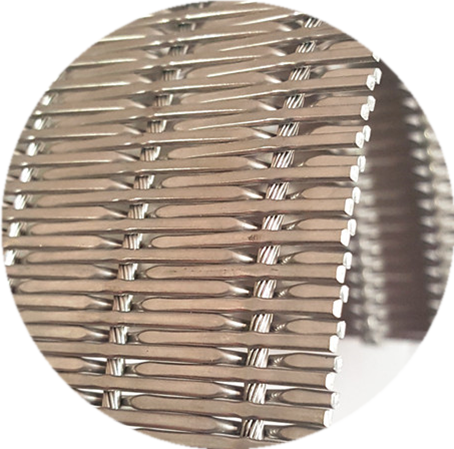

CR-S31

Material:Stainless Steel304\316

Cable diameter:3mm*3
Cable pitch:40mm
Rod diameter:3mm
Rod pitch:11mm
Weight:9.5kg/m2

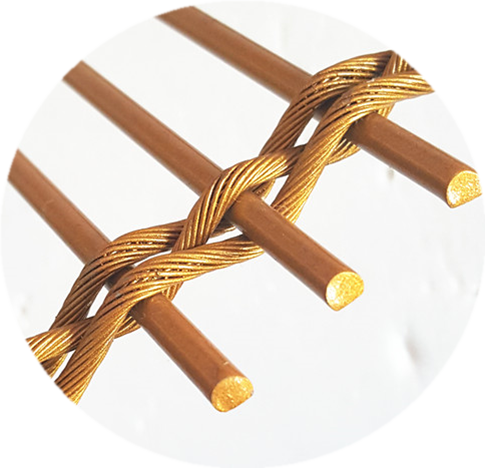

CR-S41S

Material:Stainless Steel304\316

Cable diameter:1mm*4
Cable pitch:36mm
Rod diameter:2mm
Rod pitch:4mm
Weight:7kg/m2
Flexible Metal Mesh(图7)Flexible Metal Mesh(图8)Flexible Metal Mesh(图9)

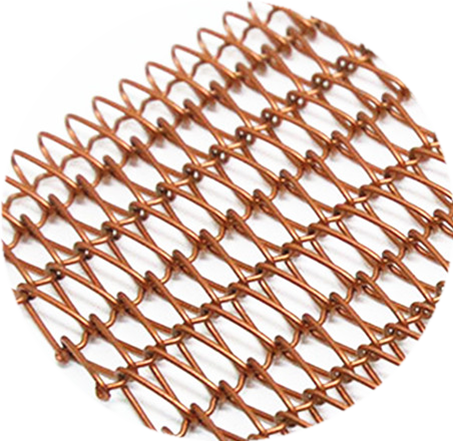

CR-S110

Material:Stainless Steel304\316

Cable diameter:2mm*1
Cable pitch:17.5mm
Rod diameter:1.5mm
Rod pitch:1.5mm
Weight:11kg/m2

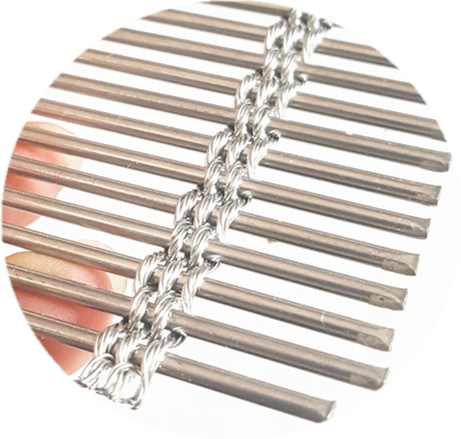

SW-GF01

Material: stainless steel wire 304/316/316L.

Warp wire diameter: 2.5mm.
Warp wire pitch: 12.5mm.
Weft wire diameter: 2.5mm.
Weft wire pitch: 25mm

SW-CR01

Material: stainless steel wire 304/316/316L.

Warp wire diameter: 2.6mm.
Warp wire pitch: 24.3mm.
Weft wire diameter: 2.6mm.
Weft wire pitch: 22.5mm

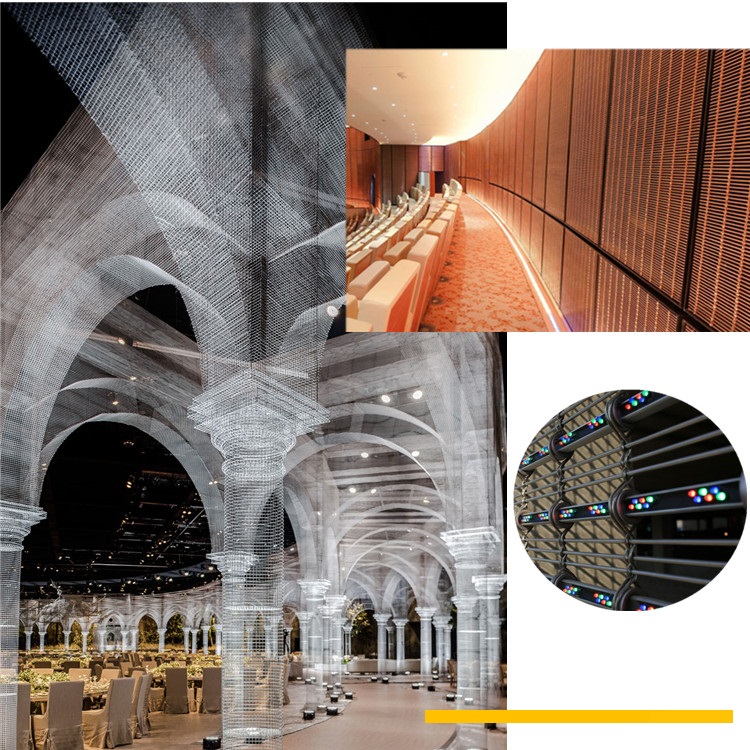

Application of flexible metal mesh

• Space divider.
• Wall decoration.
• Ceiling decoration.
• Window curtain.
• Handrail balustrade.
• Elevator cab mesh
• Facade cladding.
• Glass laminated wire.
• Sunshade screen.
• Security door.
• elevator cabins screen.
• Floor covering fabrics
• Wire mesh facades.
• Shade screens.
• Architecture ceilings.
• Metal draperies for walls.
• Partition and isolation screens.
• Staircases isolation screen.


Flexible Metal Mesh(图10)
