Flexible Wire Mesh Ceiling Drapery

发布时间:2019-10-07 16:27:55 浏览次数:




Flexible Wire Mesh Ceiling Drapery Specification

Flexible wire mesh drapery is available in a wide range of wire diameters & pitches. The following table gives a broad indication of availability:


wire diameter range pitch range
0.9mm-1.27mm4.0mm-12.7mm
1.4mm-1.60mm5.5mm-15.0mm
1.8mm-2.8mm8.0mm-20.32mm
3.4mm-4.0mm19.05mm-25.0mm
Pitch and Wire Diameter (mm)
Average weight (kg/m²)
Max belt tension per space (N)
Minimum transfer roller outside diameter (mm)
Minimum recommended reverse bend diameter (mm)*
Typical open area (%)
4.24 x 0.90
1.3
13.4
12
43
77
4.30 x 1.27
2.6
44.5
12
43
67
5.5 x 1.0
1.35
19.6
12
55
79
5.5 x 1.27
2.2
44.5
12
55
73
5.6 x 1.0
1.33
19.6
12
56
79.5
5.64 x 0.90
1.0
13.4
12
57
82
6.0 x 1.27
1.9
44.5
16
60
76
6.35 x 1.27
2.0
44.5
16
64
77
6.40 x 1.40
2.7
55
20
64
76
7.26 x 1.27
1.6
44.5
16
73
80
7.26 x 1.60
2.5
66.7
19
73
75
9.60 x 2.08
3.5
97.8
25
96
75
12.0 x 1.83
2.3
80.0
29
120
81
12.7 x 1.83
2.2
80.0
29
127
82
12.7 x 2.35
3.6
133.4
38
127
78
12.7 x 2.8
5.1
191.3
38
127
72
20.32 x 2.35
2.6
133.4
38
203
85

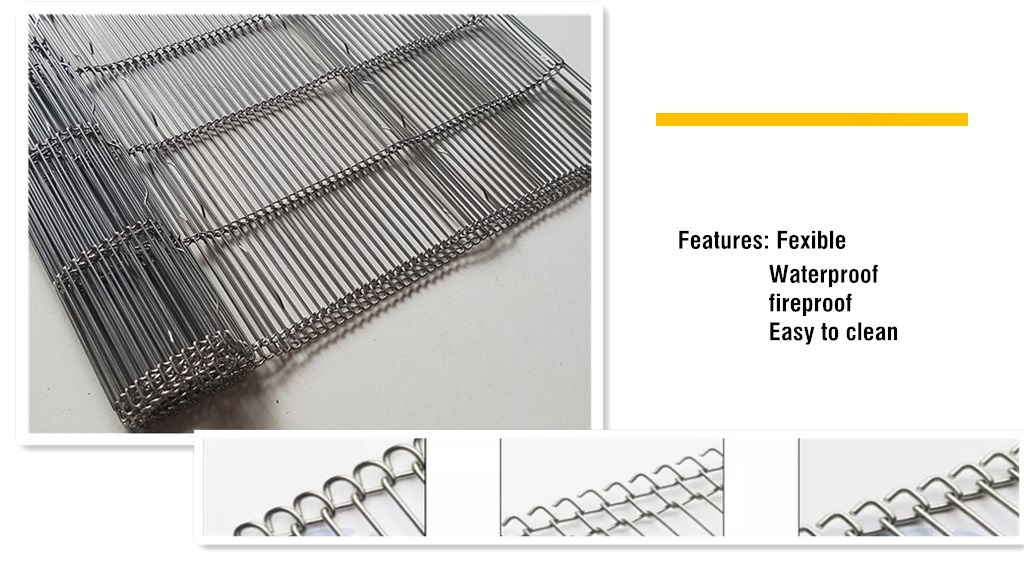

edges of flexible wire mesh ceiling drapery

Flexible Wire Mesh Ceiling Drapery(图1)
