specification of Decorative Aluminum Expanded Mesh Facade-mesh details
Mesh SWDxLWD | Strand width | thickness | Total thickness | Dimensio nHmax | Weight Alu | Weight M.GS.Steel | Open area |
| (MM) | (MM) | (MM) | (MM) | (MM) | (kg/m2) | (kg/m2) | (%) |
| 115x40mm | 20 | 1.5 | 21 | 3000 | 3.2 | 9.7 | 26 |
| 115x40mm | 20 | 2.0 | 21 | 3000 | 4.2 | 12.8 | 26 |
| 115x40mm | 20 | 2.0 | 21 | 3000 | 6.4 | 19.3 | 26 |
Decorative Aluminum Expanded Mesh Facade- frame details U type
| frame material | material thickness | frame size | surface treatment |
| aluminum | 2mm | 40mmx20mm | PVDF PVD Spraying coated |
| stainless steel | 2mm | 40mmx20mm | |
| steel | 2mm | 40mmx20mm |

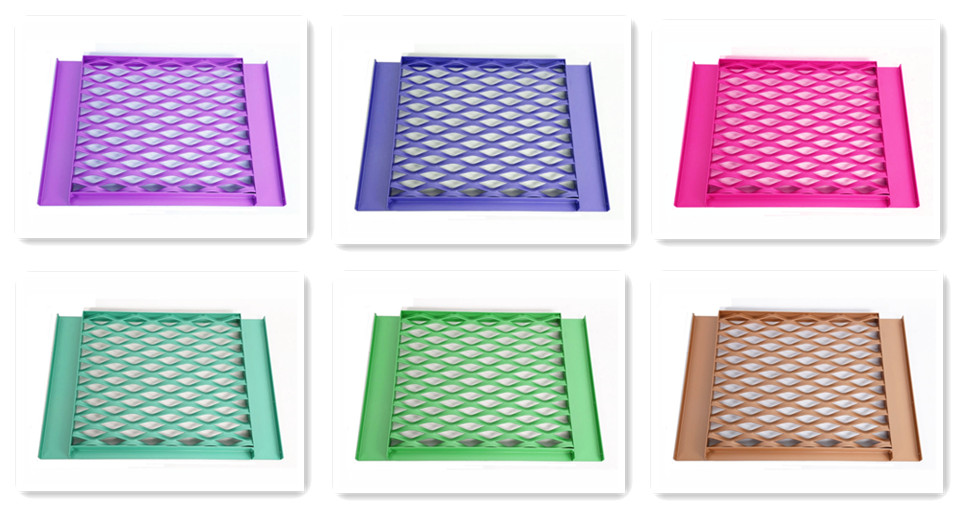

surface treatment of Decorative Aluminum Expanded Mesh Facade

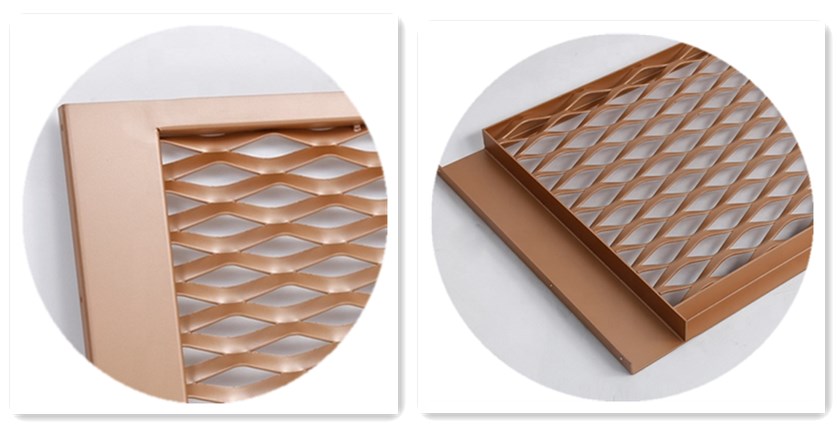

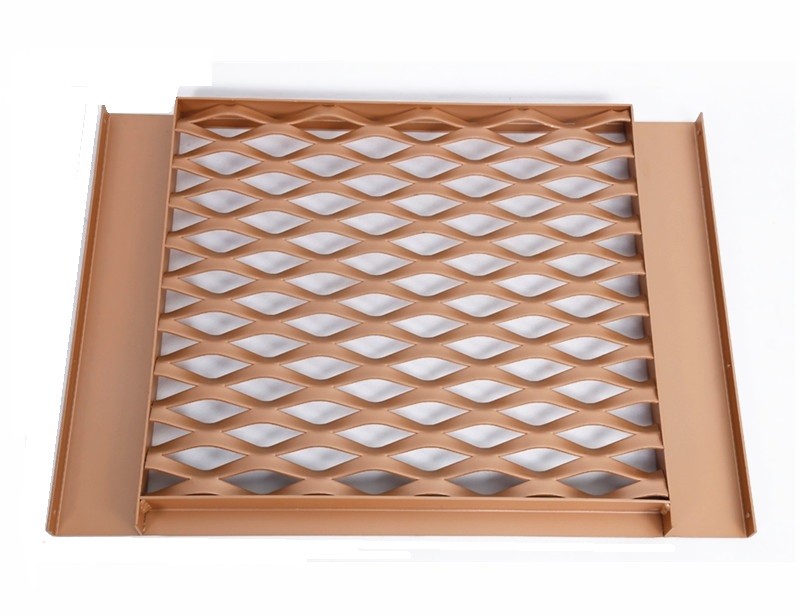

image details of Decorative Aluminum Expanded Mesh Facade
...
